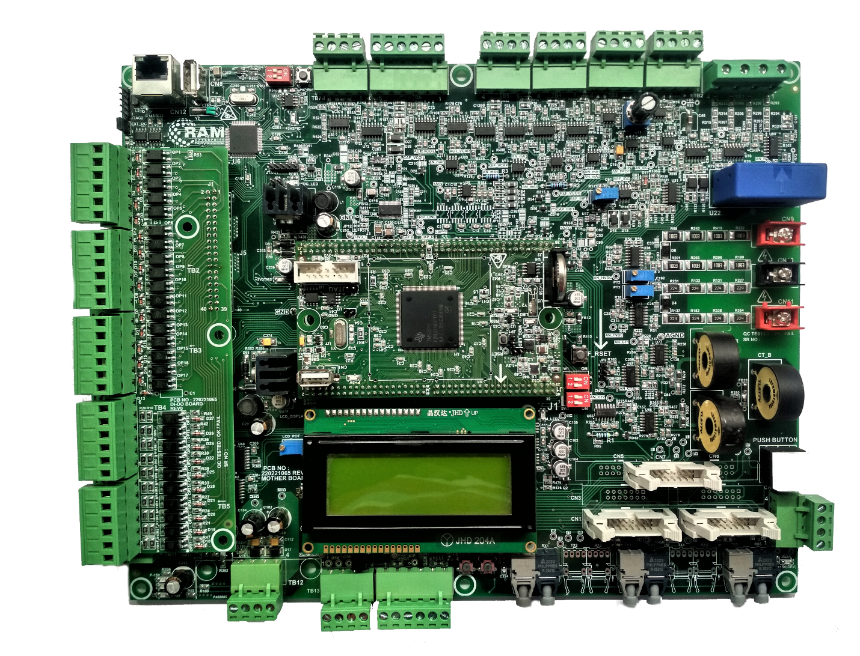

High Power (500KW – 3.0MW) Controller Solutions
| Controller | ALTIUM 23.3.1 | Firmware |
|---|---|---|
| Texas Instrument | Schematic, Layout, 3D | C code available |
| Application (0.5-4.0 MW Power Supply) | ||
|---|---|---|
| Induction Heating / Melting | Energy Storage | Green Hydrogen |
| DC-DC Converter | Solar Central Inverter | |

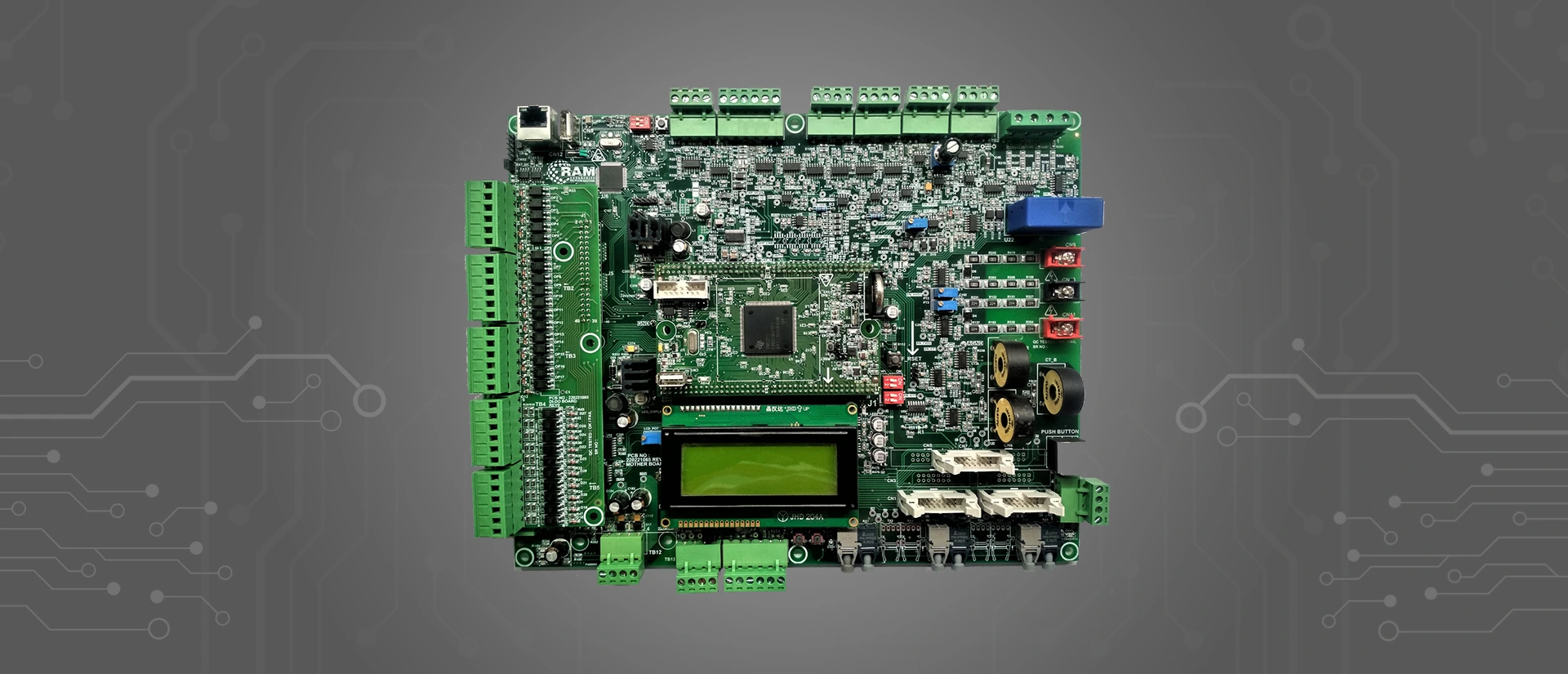

- Dual Core 32-bit, 200MHz Floating Point Processor with trigonometric math unit along with redundant Processor.
- Capable to drive high resolution 18 PWM.
- Half/full control SCR firing for rectifier.
- 12-bit 15 channel, 16-bit 4 channel for high resolution.
- 100 Mbps Ethernet for POE & remote monitor.
- 6M-bit internal Memory
- 16GB USB for fault log with RTC.
- Modbus for HMI interface.
- 7-Channel 4-20mA for PLC integration.
- 29 Isolated DI + 14 Isolated DO.
- RS485 for HMI
- Isolated RS485 for Master-Slave.
- 2 Isolated 12-bit DAC
- LCD for local display
- Local On-Off Push button
- Fiber Optic PWM Drive Optional
Medium Power (50-1250 KW) Controller Solutions
| Controller | ALTIUM 23.3.1 | Firmware |
|---|---|---|
| Microchip | Schematic, Layout, 3D | C code available |
| Application (IGBT Based Power Supply) | ||
|---|---|---|
| Induction Heating / Melting | Pulse Power Supply | Power Quality |
| UPS | Industrial | |

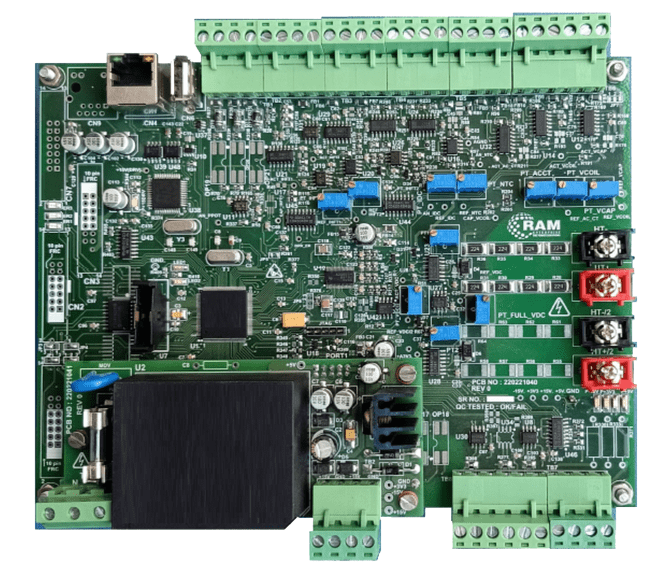

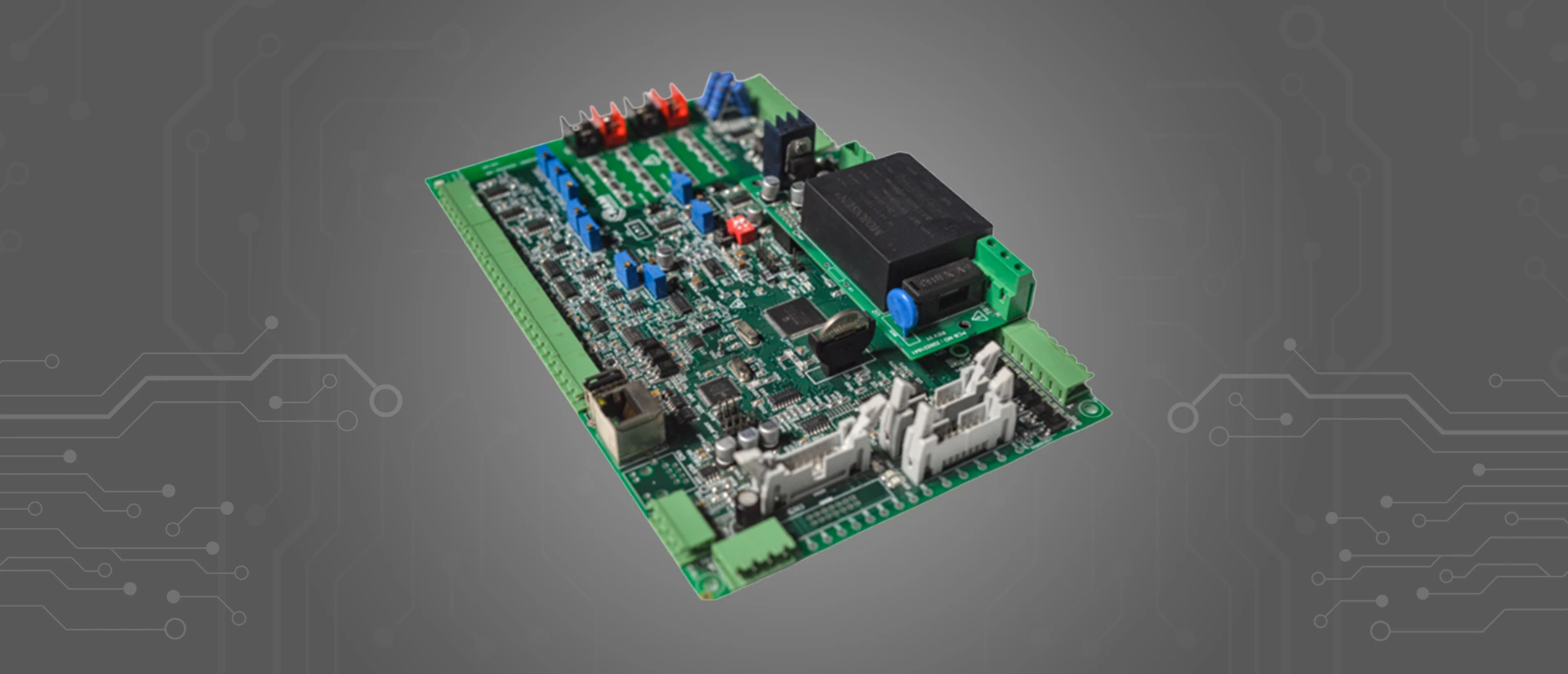

- 70Mhz 16-bit Core Processor
- Capable to drive 12 PWM (8.32 ns PWM resolution)
- Half/full control SCR firing for rectifier.
- 10-bit 10 channel, 14-bit 4 channel for high resolution ADC.
- 100 Mbps Ethernet for remote monitor.
- USB 2.0 OTG-Compliant Full-Speed Interface for fault log with RTC.
- Modbus for HMI interface.
- 2-Channel 4-20mA for PLC integration
- 18 Isolated Digital Input
- 03 Isolated Digital Output
- RS485 for LCD/HMI + RS485 optional.
- Low cost actual Inverter Power factor calculation.
- Peak current detection.

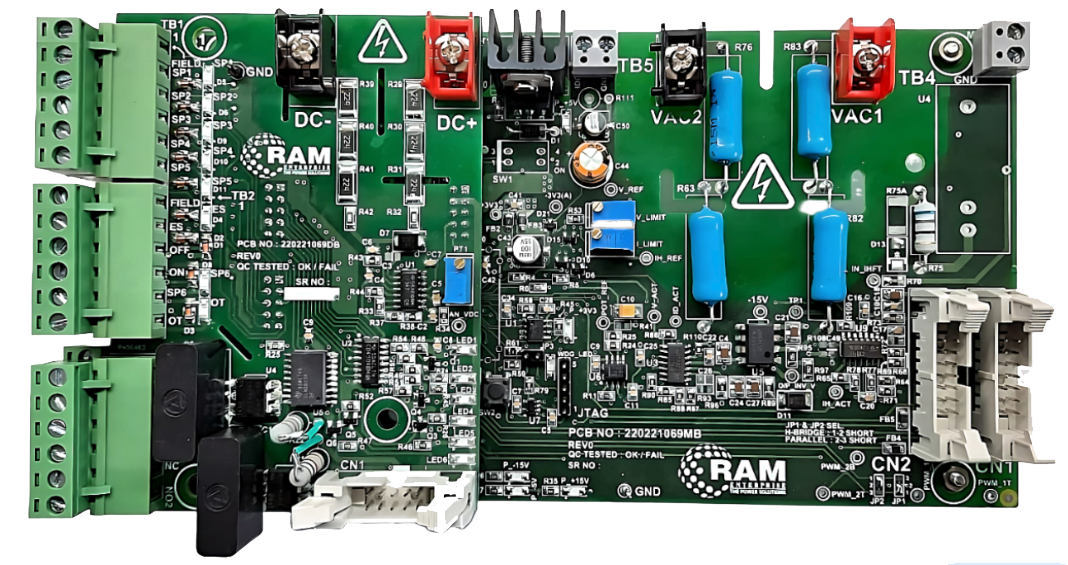

SCR based Power supply Controller Solutions
| Controller | ALTIUM 23.3.1 | Firmware |
|---|---|---|
| Microchip | Schematic, Layout, 3D | C code available |
| Application (SCR Based Power Supply) | ||
|---|---|---|
| Universal Soft start | Half controlled Controller | Full controlled Controller |
| Industrial | Traction | |

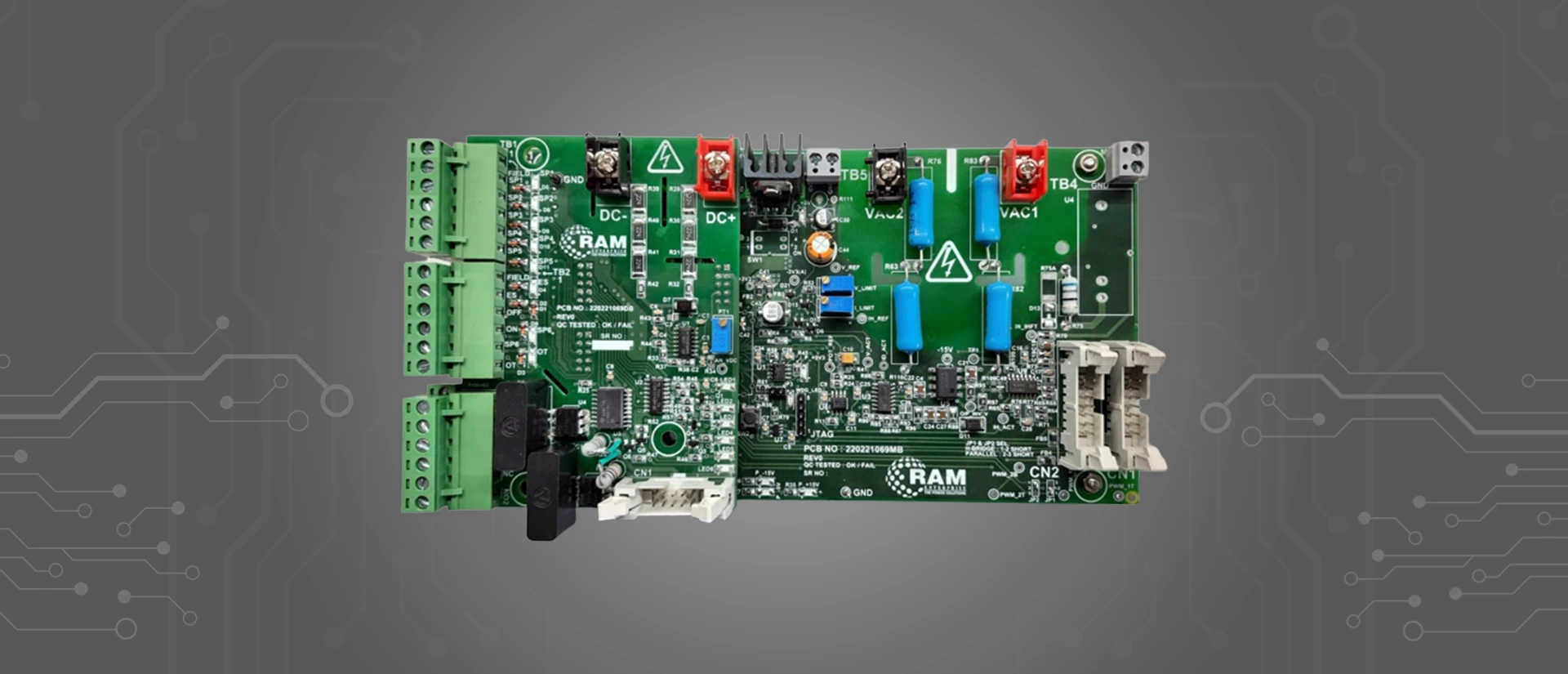

- 30Mhz 16-bit Controller
- Cost optimized solution
- No need of Pre-charge passive components
- Soft start Half/full control SCR firing for rectifier
- DC Short circuit Protection
- 6 Isolated Digital Input
- 1 relay Output for alarm
- RS485 for HMI
- Line current & DC voltage monitoring
- Order Code – 220221018

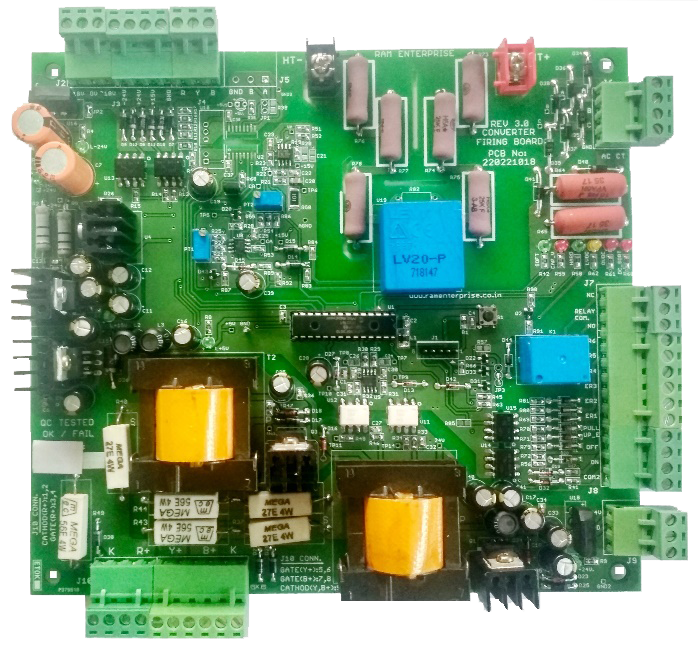

- Half controlled SCR Firing Card

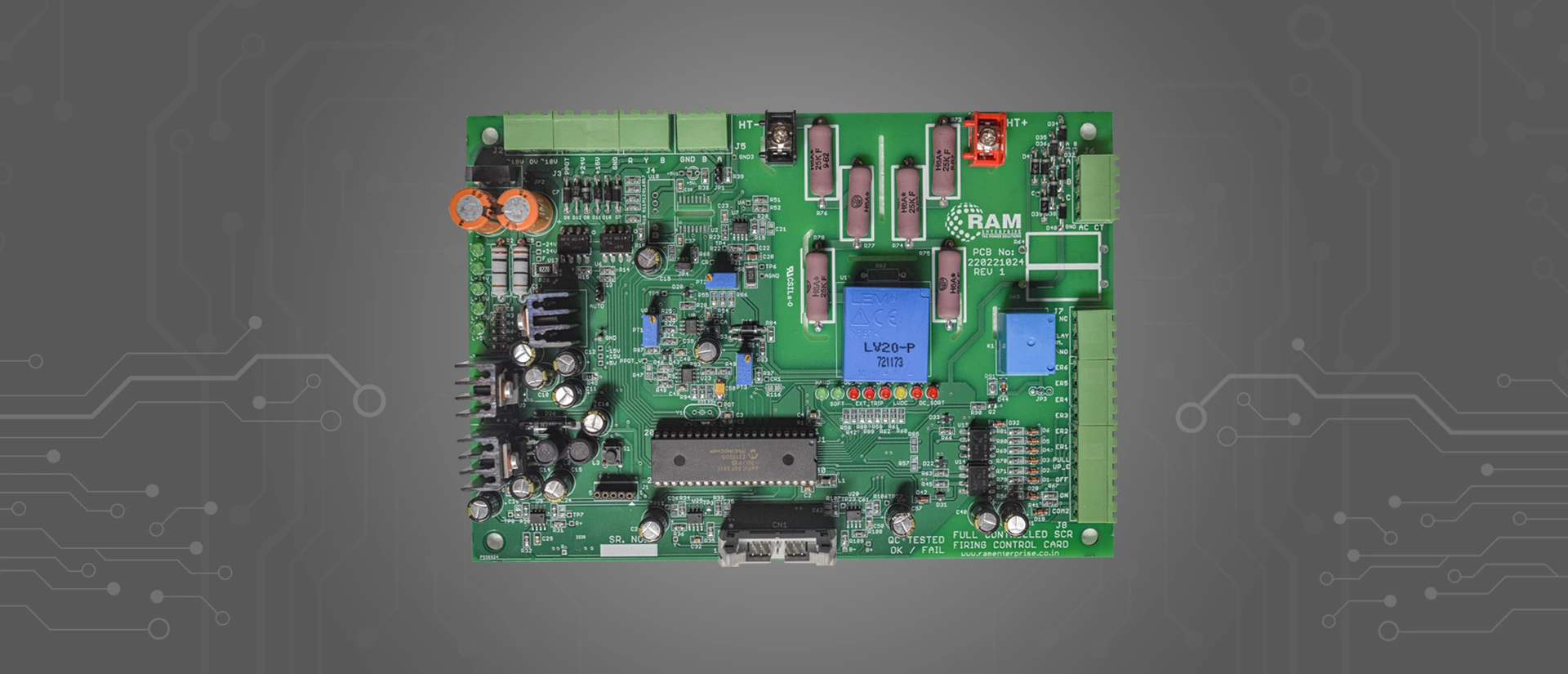

- Order Code – 220221024

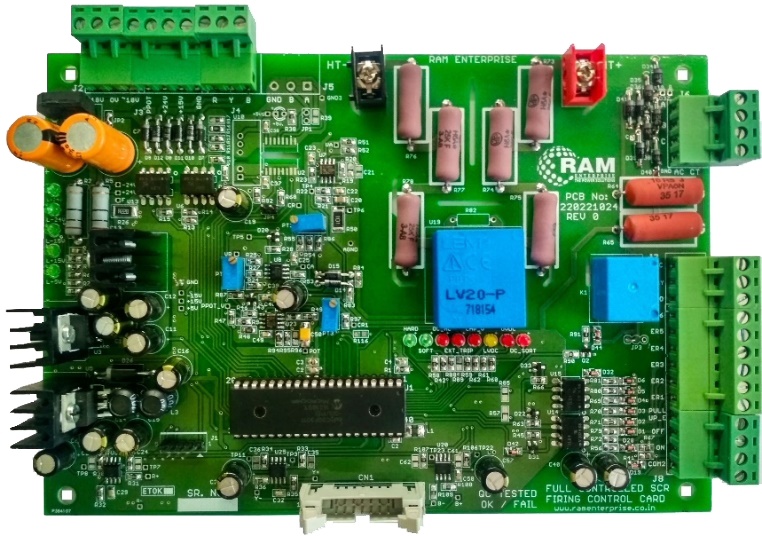

- Full controlled SCR Firing Card

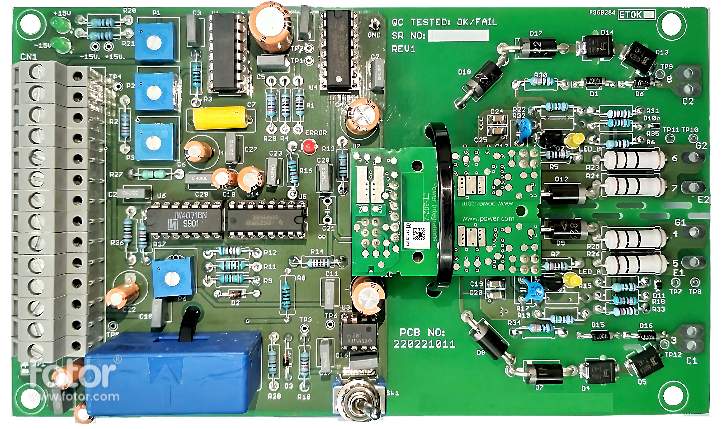

Low Power (3KW-50 KW) Controller Solutions
| Application (IGBT based Power Supply) | ||
|---|---|---|
| Induction Heating | Corona treatment | Plasma treatment |
| Food Process Industry | Industrial | |

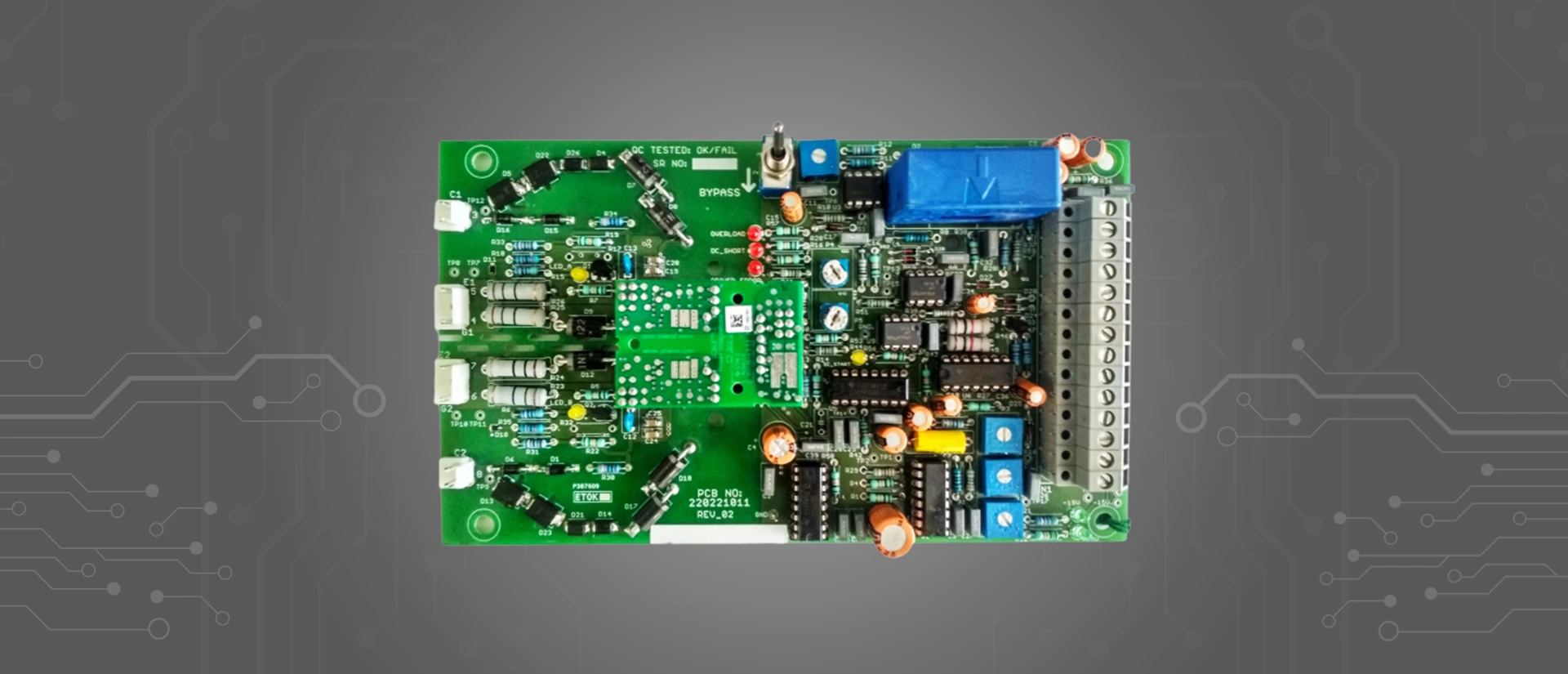

- 50Mhz 16-bit Core Processor
- Capable to drive 6 PWM for Inverter.
- PWM Support for: DC/DC, AC/DC, Inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
- 10-bit 8 ADC channel.
- Modbus for HMI interface.
- 10 Isolated DI + 02 Isolated DO.
- RS485 for LCD/HMI + RS485 optional.

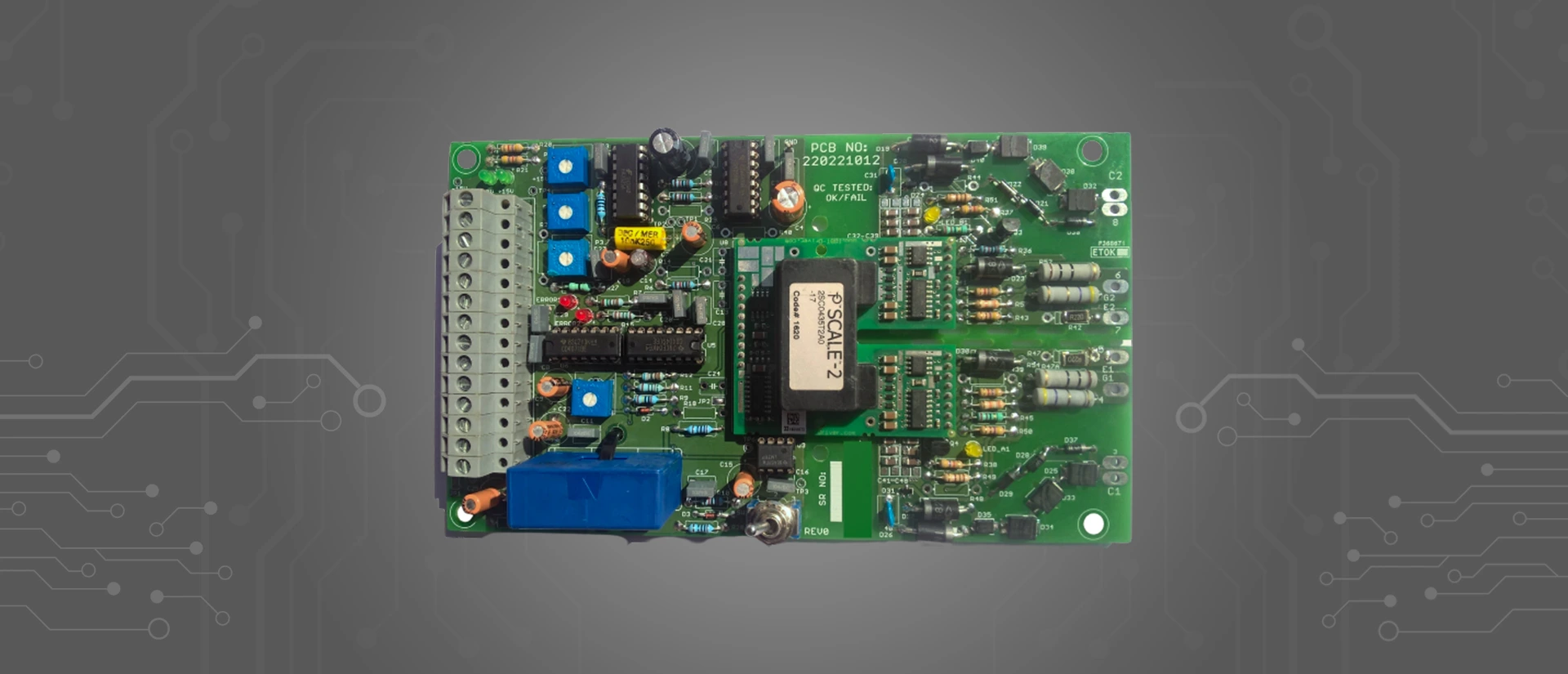

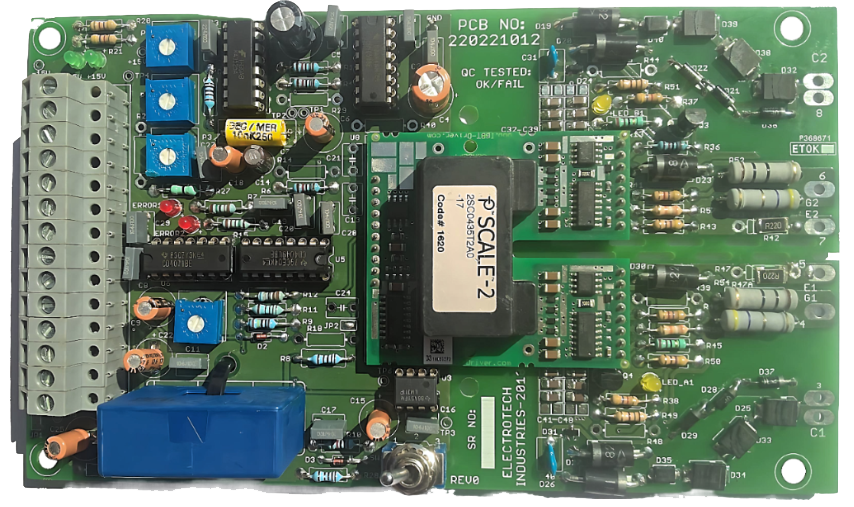

- Analog PWM Generator for 1-PH Inverter
- PWM Support for: DC/DC, AC/DC, Inverters
- Inbuilt Isolated IGBT Driver
- Current Feedback & trip mechanism
- THT technology for mass market
- Useful upto 10KW IGBT based Power supply.
